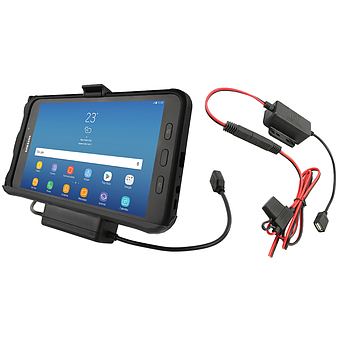

RAM-HOL-SAM7P2-HARU EZ-ROLL'R POWER AND DATA DOCK FOR SAMSUNG TAB ACTIVE

Product ID: RAM-HOL-SAM7P2-HARU

Price: $199.99

OVERVIEW

This RAM® EZ-Roll’r powered cradle for the Samsung Tab Active2 supports simultaneous data syncing, and has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through seven GDS® pogo pins, and you can easily rotate the device for use in portrait or landscape mode. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus.

Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the GDS® modular hardwire charger, GDS® genuine USB 2.0 straight cable, 200mm cable with mUSB female connector for power, and 200mm cable with USB Type-A female connector to attach any USB 1.1 peripherals, 500mA max.

HARDWARE INCLUDED

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) 4" Cable Tie

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite

PACKAGING TYPE

Poly Bag

INPUT RANGE

8V - 40V DC

OUTPUT VOLTAGE

5VDC

OUTPUT CURRENT

2.5A max

OUTPUT CONNECTOR TYPE

(2) USB Type A Female (supports USB 1.1 peripherals, 500mA max

INPUT CABLE LENGTH

1.2 Meters including 2 Pole Flat Marine Connector

OUTPUT CABLE LENGTH

1.4 Meters including 1.2M Type-A male to mUSB male cable

OPERATING TEMPERATURE

-10°C to +70°C

STORAGE TEMPERATURE

-40°C to +70°C

COMPLIANCE

SAE J-1113, Integrated Short Circuit Protection

CERTIFICATIONS

FCC, CE, RoHS, WEEE, e-Mark

WEIGHT

0.94 lbs.

WARRANTY STATUS

3 year warranty

ADDITIONAL INFORMATION

  • Note:Type-A port does not support USB peripheral charging (USB 2.0 BC1.2)
